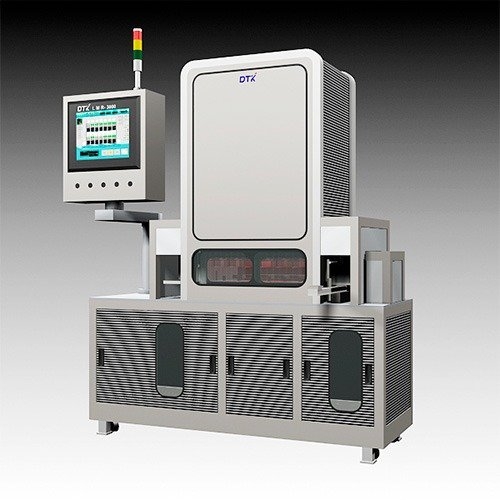

Aspherical lens molding machine
Aspherical lens molding machine that enables precise control for pressure and temperature.
After putting the preform material into the aspherical mold,continuous molding is performed in three stages: preheating, molding, and cooling.
Features
- High reproducibility in molding conditions and excellent stability.
- Perfect for high-speed production by efficient division for the molding process.
- Adopts an individual transfer system to enable the development for new models.
- Multi-stage pressure control function and molding data management function.
- Excels in controling oxygen concentration.
Specifications
- Mold size: φ25 to 65、Height 20 to 55mm
- Temperature: Max.650℃
- Cycle time: 40 to 60s（In case of Cavity:φ10x3 meniscus lens）
- Equipment dimensions：Ｗ1530ｘＤ1400ｘＨ1870（except chillers）
- Supply voltage: AC220V 50/60Hz (3-phase）Max.34KW AC220V 50/60Hz (2-phase） 1.1KW
