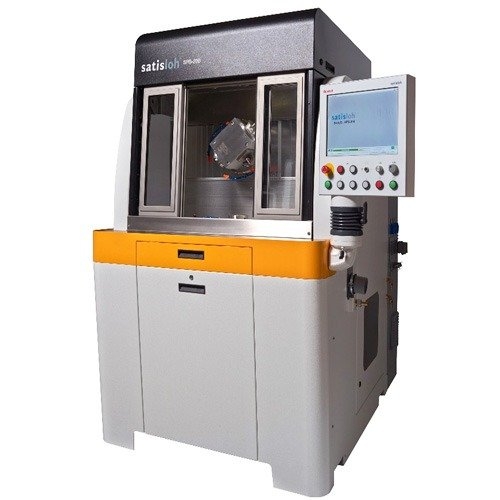

Satisloh SPS-200 Lens Polisher
The SPS-200 processes spheres, aspheres, and freeform surfaces within a working range of 5–200 mm, but also a wide spectrum of other optical surfaces such as cylinders, toroids, and more.
Features
- 5-axis CNC polishing equipment: Supports spherical, aspherical, and freeform surface.
- Spherical Ø 5–120 mm (up to 140 mm with restrictions), aspherical Ø 10–300 mm
- Optionally, the HS-200 (handling system) can be installed and automated.
Specifications
- Working range: Spherical Ø 5–120 mm (up to 140 mm with restrictions), Aspherical Ø 10–300 mm
- Dimensions (wxdxh): 1200 x 1850 x 1970 mm
- Weight: approx. 3200kg
