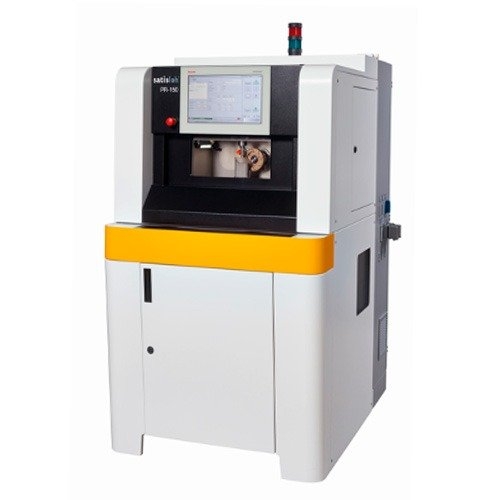

Satisloh PR-150 Prism Grinder

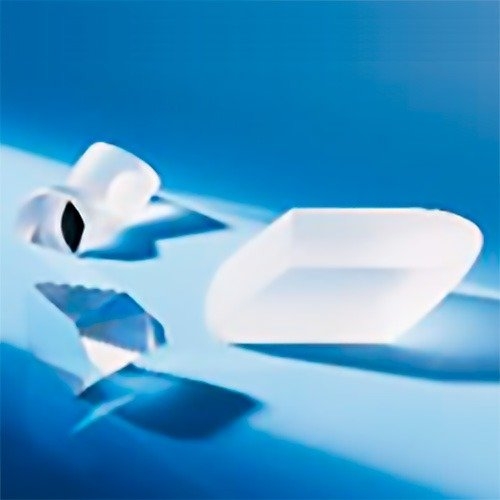

Dedicated prism grinding machine corresponding to various shapes of prisms.
Features

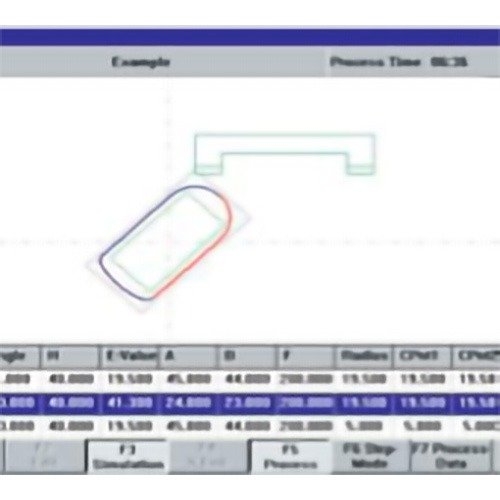

- Compact and easy operation by software with 3D animation, angle output by 3-axis（When using C-axis mechanisms, angle precision ≦ 30s）
- Max. working range： Diagonal 150mm (symmetrical shape)
Specifications
- Wheel spindle speed： 2,000-5,000rpm
- Feed speed ： 0.1-100mm/min.
- Dimensions： W1000xD1635xH1306mm
- Weight： 1,080Kg
- Supply voltage： AC200V 3-phase 50/60Hz
