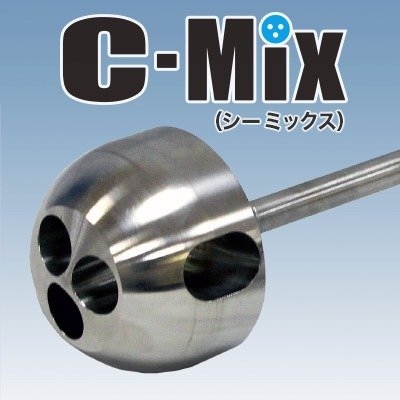

Centrifugal agitator C-Mix
- This is a new agitator that overturns conventional common sense.
- It can be used in a wide range of fields beyond the industry categories.
- Since it has no blades, it does not do the work of using a resistor in the water to push the water.
- We can make the best design to meet customers' requirements.
- Please contact us for more information!
Case Studies
The size and shape of C-Mix varies depending on the shape, capacity, viscosity, etc. of the container.
A wide range of materials such as stainless steel, Teflon, ceramics, etc. can be selected depending on the purpose of agitation.

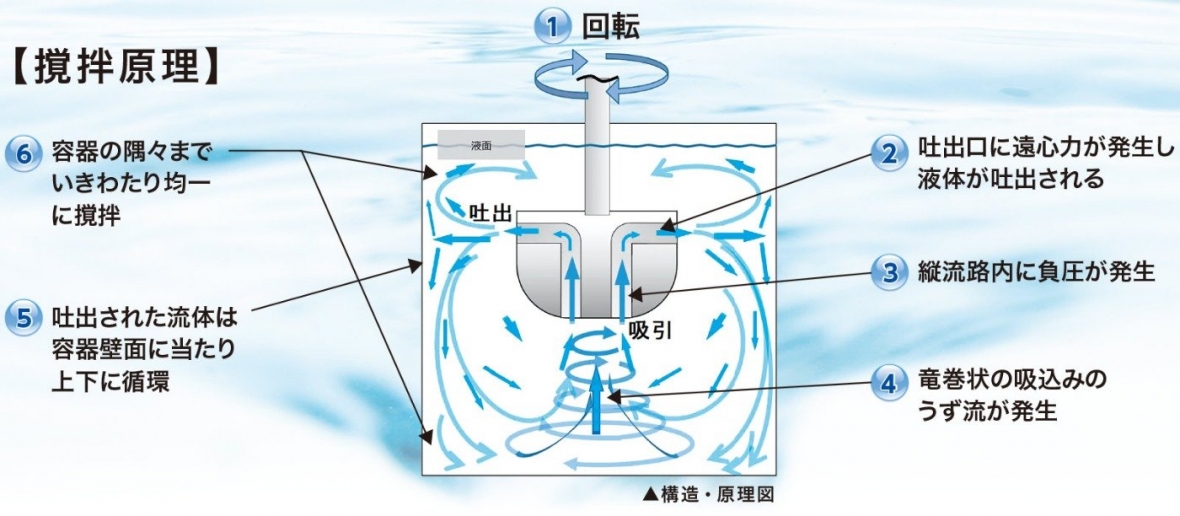

Centrifugal Agitator C-Mix Principle
- When the C-Mix is soaked in liquid, the flow channel is filled with liquid.
- Rotation generates centrifugal force at the inlet and outlet of the flow channel.
- Because of the strong centrifugal force at the outlet, the liquid in the flow channel is discharged radially outward, and the fluid in the container enters the flow channel at a high velocity through the inlet.
- The circulation amount can be designed and controlled digitally by the rotation speed and the diameter of the C-Mix.

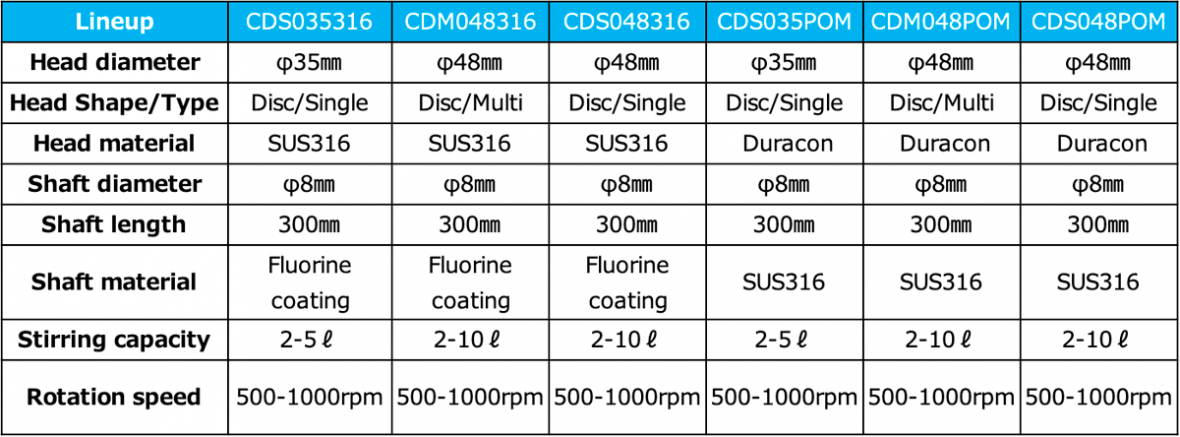

Product Specification

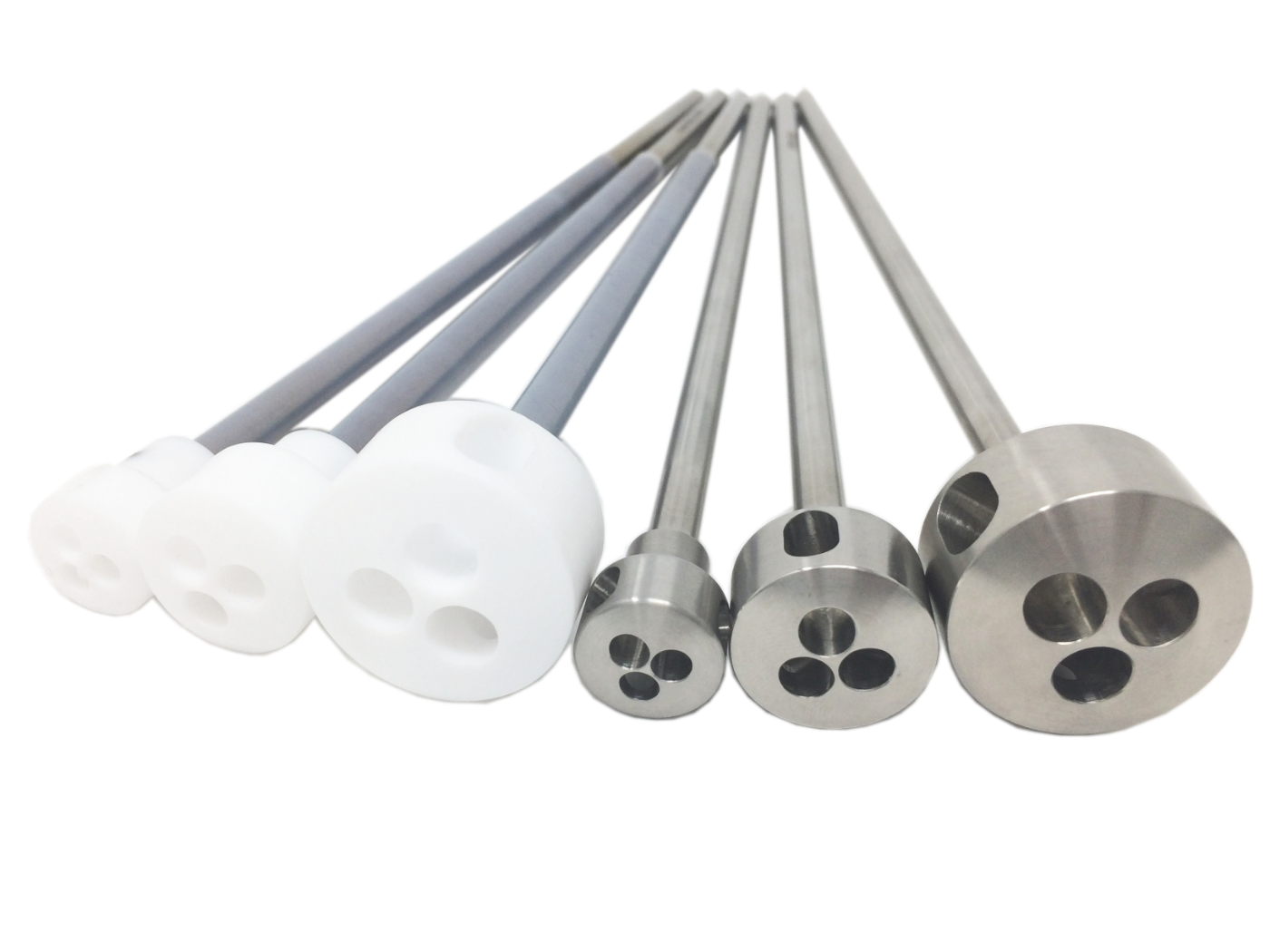

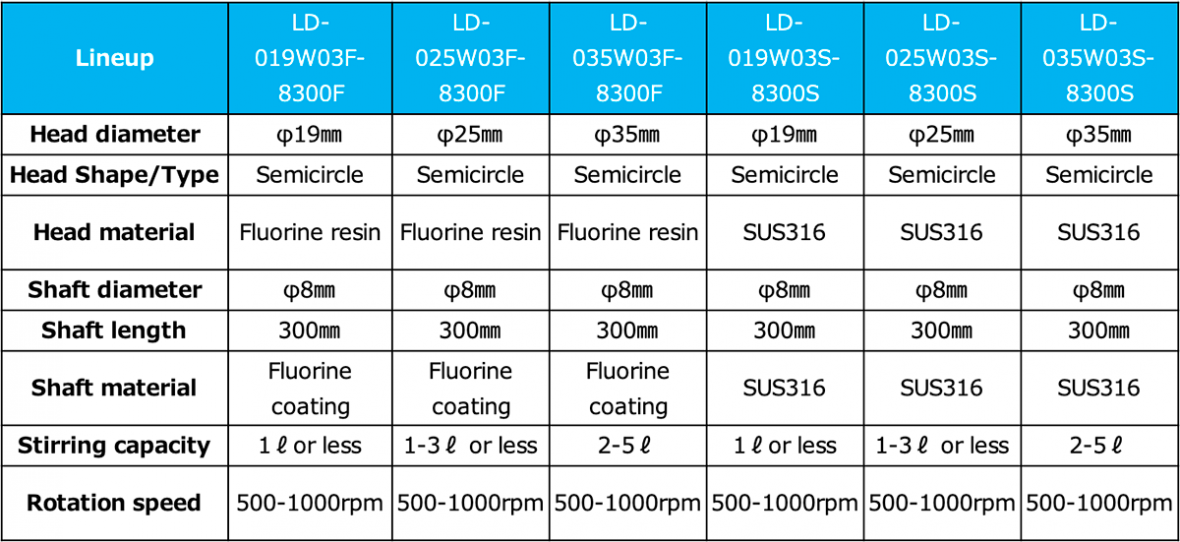

Beaker, flask, etc. (~10 liters) Single item: C-Mix for agitation

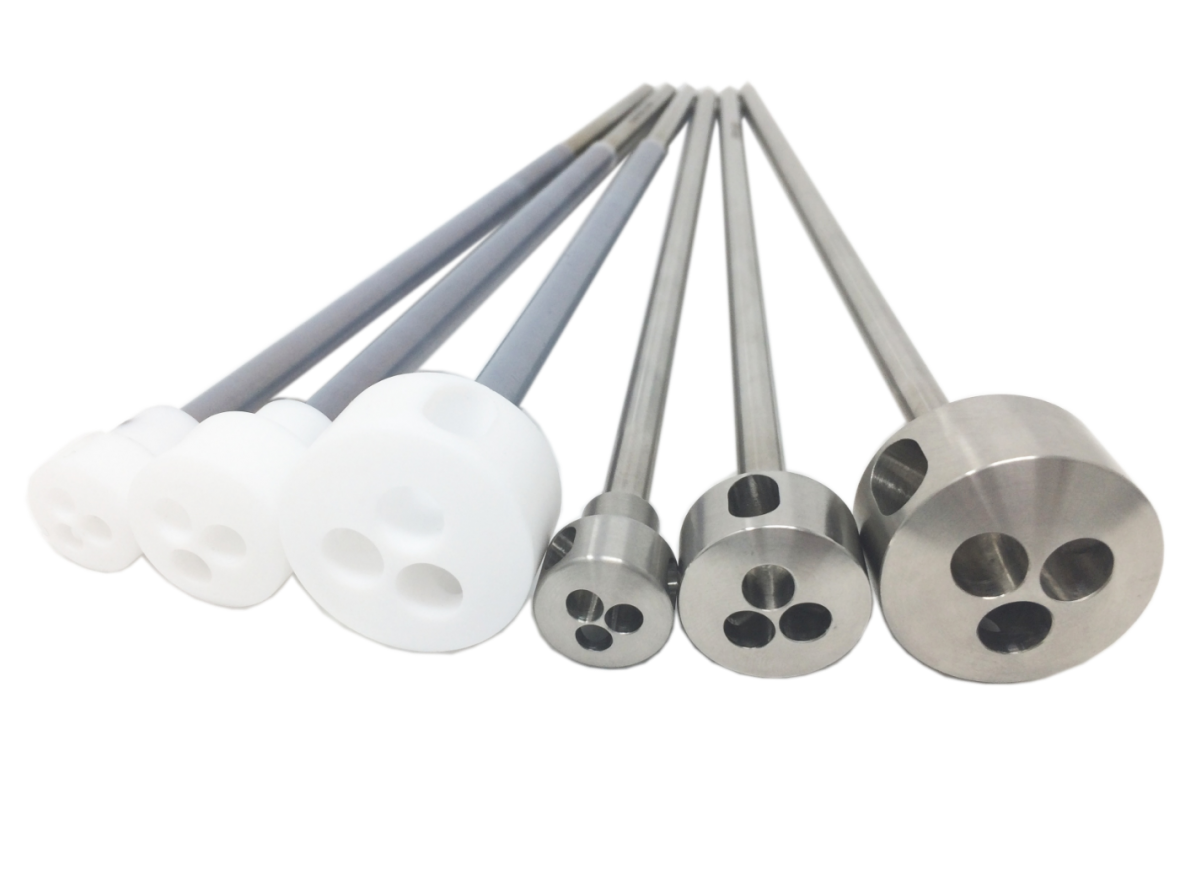

Shaft integrated type(welding and fusing process )
Shaft divided type(fixed with set screw)

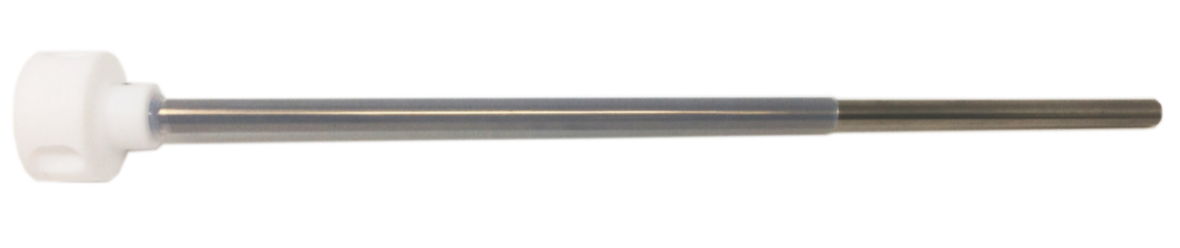

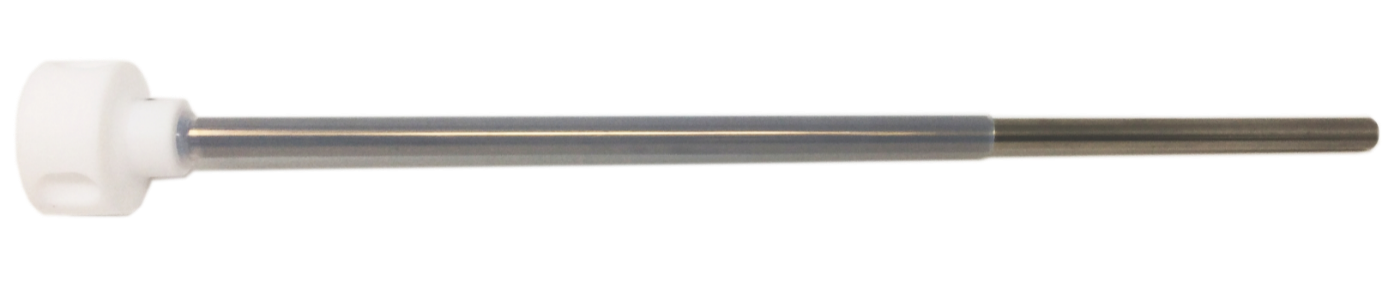

Shaft integrated type
The stainless steel shaft is coated with a Teflon tube, and it can be used for stirring liquids that are strictly prohibited from contacting stainless steel.

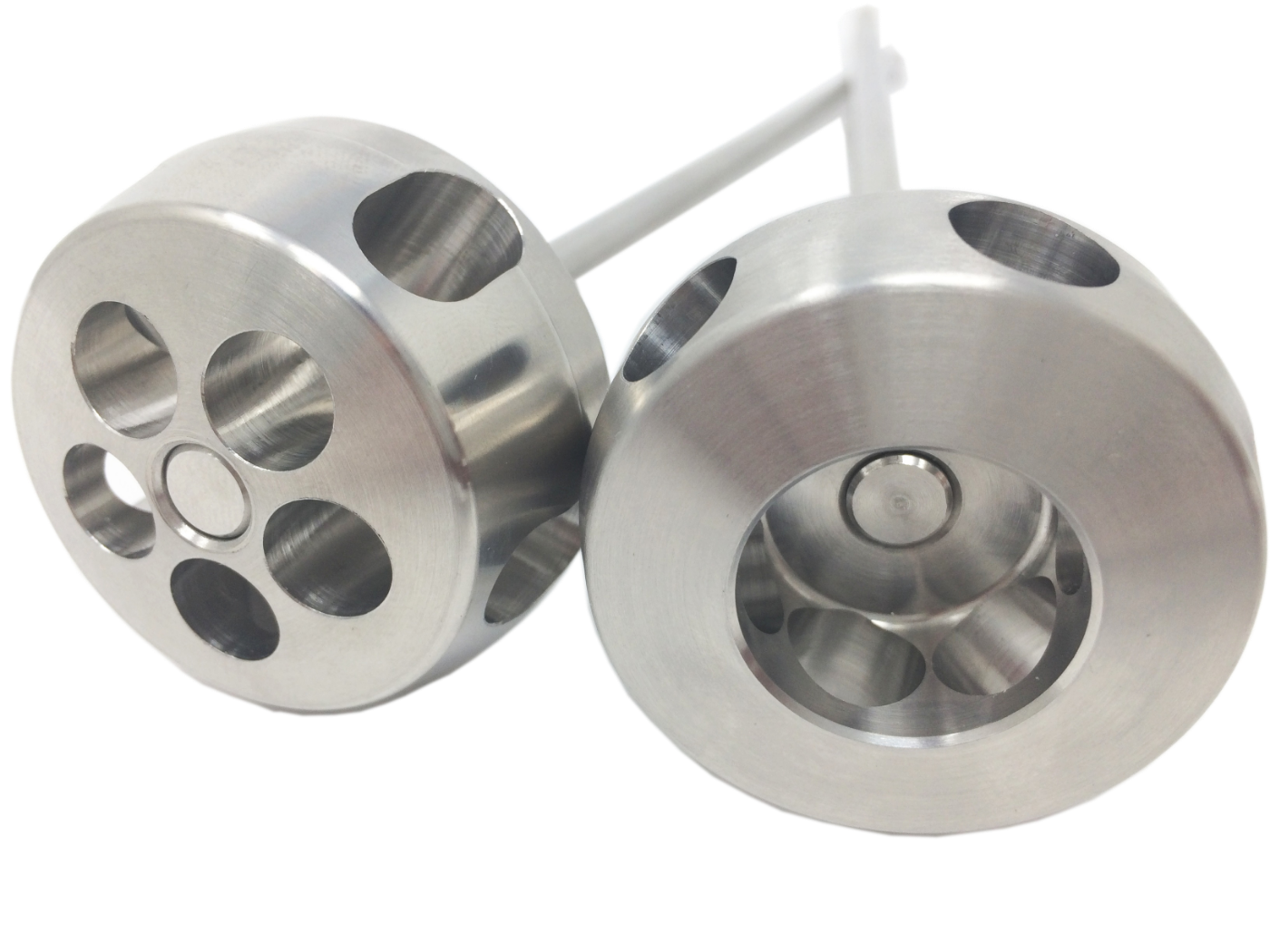

Shaft divided type
In the shaft divided type, C-Mix and the shaft are fixed with set screws.
Not only can the height of the C-Mix be adjusted, but it is also possible to install multiple C-Mix on a single shaft, or to install with its orientation inverted.

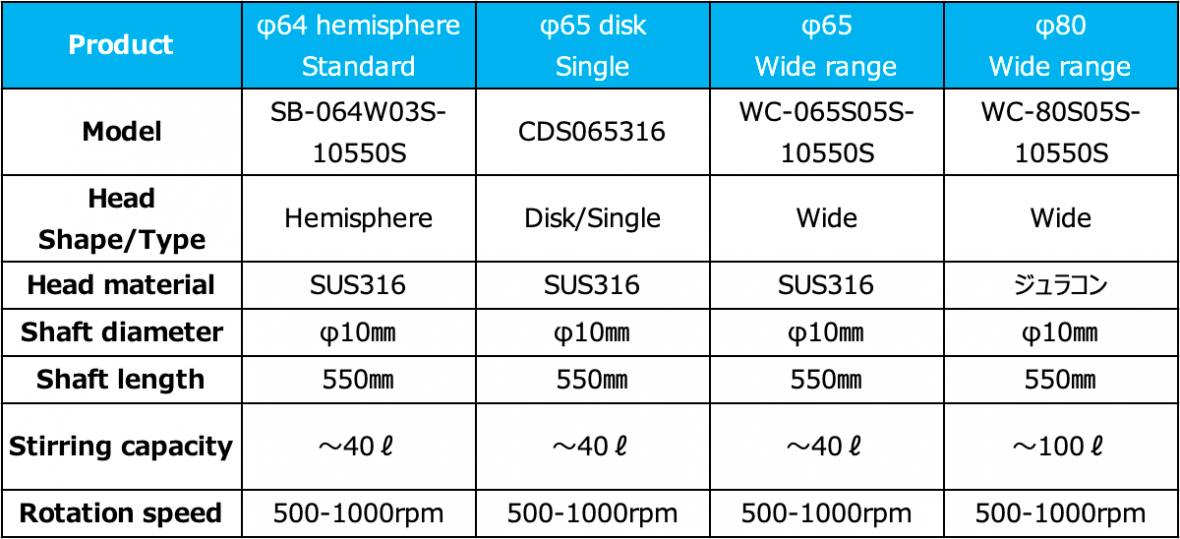

18 liter can, Pail can (~40 liters) Single item: C-Mix for agitation
Disc type:
C-Mixとシャフトをイモネジで固定しており、C-Mixの高さを調整できるだけでなく、1本のシャフトに複数個のC-Mixを設置することや、C-Mixの向きを反転して設置することも可能です。

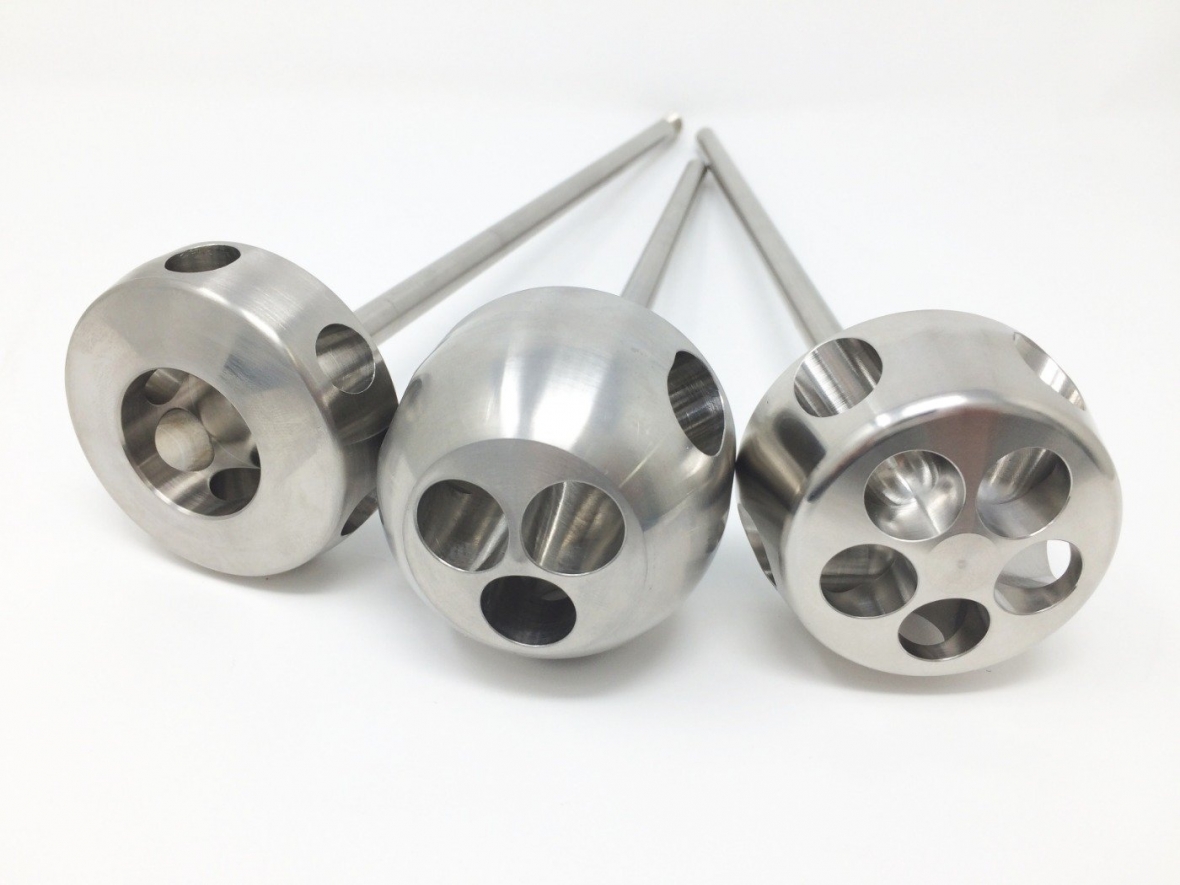

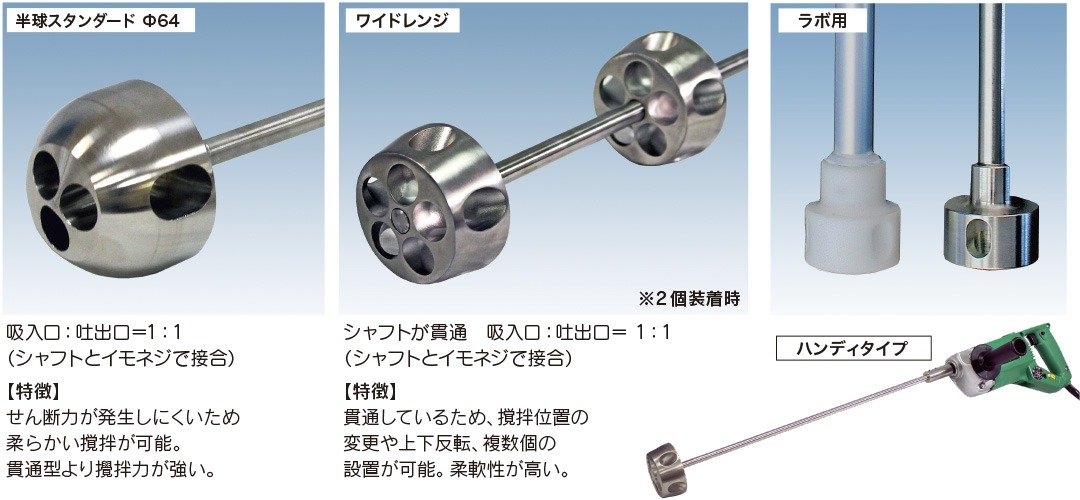

Disc type: Hemispherical type:Wide type
Hemispherical type:
The hemispherical type has a hemispherical shape at the tip, and can be agitated close to the corner of the container.
It is suitable for work by attaching to a handy agitator.
If sediment accumulates in the corner of the container even after stirring, the semispherical type can be stirred close to the corner of the container.
Wide type:
Wide type can stir liquids with viscosities up to 1500 cps.
The slanted discharge holes create an upward flow that agitates even highly viscous liquids to every corner of the container.
We look forward to hearing from you about custom-made and custom-ordered products.
We can respond to consultations for a wide range of applications in the industrial field, foodstuffs, pharmaceuticals, etc., utilizing our extensive know-how in the use of C-Mix. (Materials: various SUS materials, Teflon, Duracon, PP, etc.; Finishing: electropolishing, buffing, etc.)
In particular, we can meet the needs of customers who have quality, safety, and hygiene problems with existing agitation. Please contact us first.
Applicable to large tanks that cannot be handled by standard products!
We have a lot of experience with tanks from 1 to 5 ㎥! (We can also consider large facilities of 5 ㎥ or more.)
C-Mix for experiments and evaluations
- We have a variety of experimental facilities, so we can conduct experiments and evaluations as necessary when customers conside introducing C-Mix.
- We propose the most suitable C-Mix based on the experimental data. (size, shape, structure, rotation speed, installation position, material, etc.)
- Experiments and evaluations can be conducted at the customer's plant or facility, or at our company.
★Costs may be incurred for experiments and evaluations.
Equipment for various experiments (1) Various C-Mix

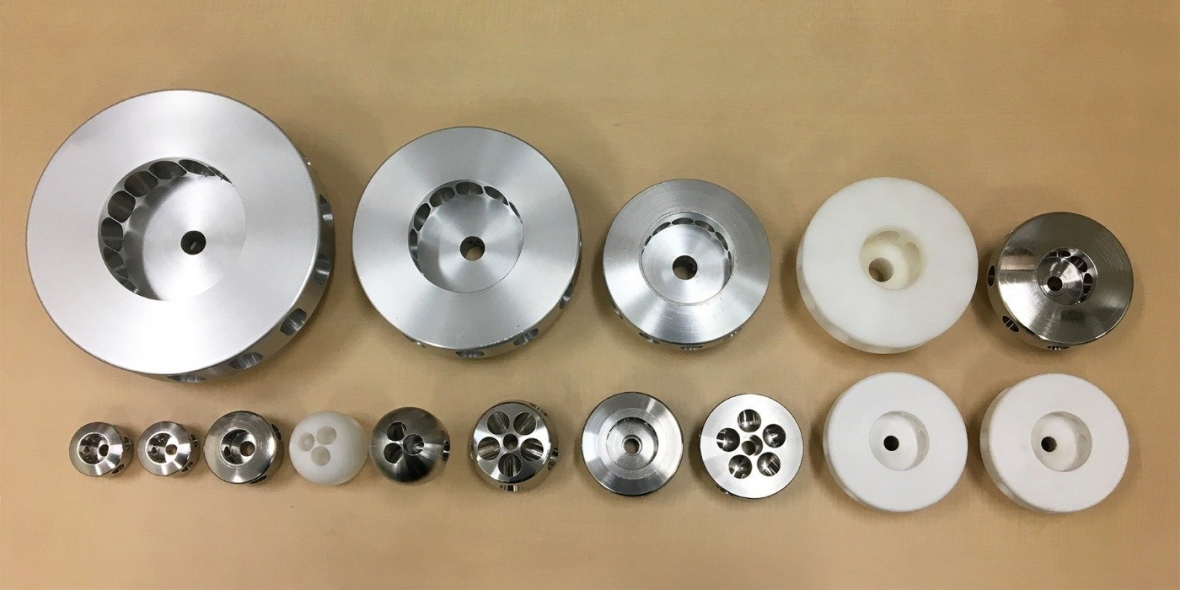

Various C-Mix
Desktop type agitator
Agitator for demonstration + 20L water tank
Handy type agitator

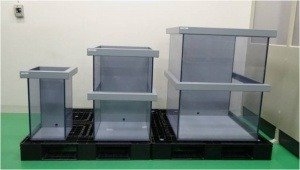

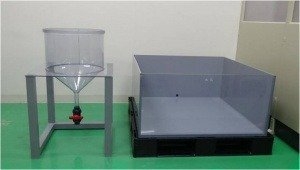

Holding equipment for various experiments (2) Various experimental tanks
- Left (1) 50L W300 D300 H600
- Middle (2) 200L W500 D500 H800
- Right (3) 500L W750 D750 H1000
- Left (4) 60LTransparent hopper
- Right (5) 450L (aspect ratio 1:2) W1000 D1000 H470
With the use of transparent material, it is possible to easily check the agitation status in the tank.
We can also produce various experimental tanks according to customers' requests.
Please feel free to contact us.
Equipment for various experiments (3) MUH, our original frame

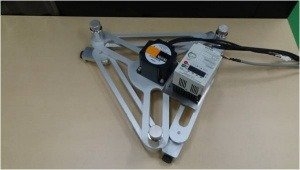

In case of arm storage

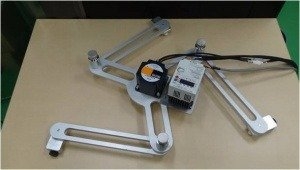

In case of arm extension
MUH (Mabuchi Universal Holder) Utility model registered.
- You can install in tanks of various shapes such as round and square.
- You can use in a wide range of tank sizes from 400 to 1,000 mm in outer diameter. (Other sizes are also available according to customers' requests.)
- You can use it at any position such as the center or corner of the tank.
- Anyone can easily install and remove it.
- The legs of the MUH are thin but strong enough so that you can see the agitation status in the tank from above, and you can add additives during the agitation experiment.
With just one MUH, you can use it for a various applications, such as multiple agitation processes in your company, experiments, and condition setting.
The MUH works extremely well in your agitation work.
We can also produce MUH according to customers' requests.
Please feel free to contact us.
MUH use case (1)
MUH + experimental tank (3)
MUH + experimental tank (3) installed in the center
MUH + experimental tank (3) installed in the corner
MUH+experiment tank (2)
MUH+experiment tank (2) installed in the center
MUH+ experimental tank (2) Installed extension rod for C-Mix height adjustment (optional)
MUH use case (2)

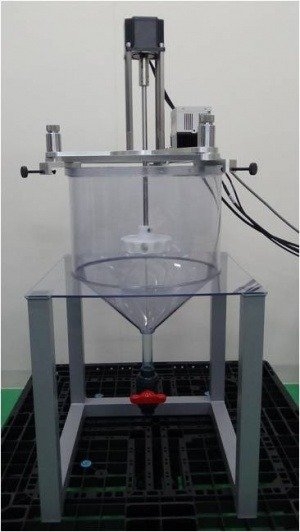

MUH+ experimental tank (5) Installed extension rod for C-Mix height adjustment (optional)

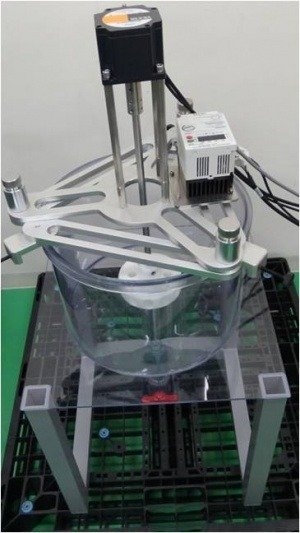

MUH and Transparent Hopper Tank Combination Example
- The hopper tank, which is widely used in the fields of food and medicine, has been made transparent so that you can see the agitation status from the side.
- In particular, you can check the dispersion status of multi-component systems with different specific gravities and C-Mix's specific suction agitation force for dispersed solids that easily precipitate.
MUH use case (3)

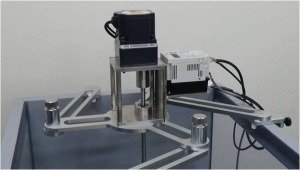

MUH bearing unit without mounting cover (optional)

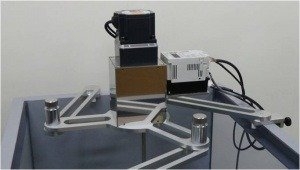

MUH bearing unit with mounting cover (optional)
Mounting bearing units on MUH
- If you have problems with rotational eccentricity caused by direct drive of the C-Mix to the motor, you can mount a bearing unit on the MUH.
- By using this mechanism, the rotation axis can be tilted.
- By using a lid equipped with this mechanism on an existing tank, you can prevent foreign matter from entering the tank, which can be used in many fields.
