Introduction to TRINC Foreign Object Countermeasure Equipment
TRINC has been developing equipment for foreign object countermeasures in order to solve these customer problems.In the electronics field, represented by semiconductors, liquid crystals, and printed circuit boards, as well as in the energy field, represented by EV car batteries and home storage batteries, miniaturization and densification are advancing, and even minute foreign objects can cause defects.
Although each manufacturer is required to take strict measures against foreign objects, the actual situation is that no visible effect can be obtained even if measures are repeatedly taken using conventional methods.
TRINC has been developing equipment for foreign object countermeasures in order to solve these customer problems.
- Hear from our customers what is actually getting troubled.
- Analyze the problems of conventional methods.
- Utilize the unique ionizing technology that has been pursued so far.
- Developed the unique dust removal technology to solve the problem.
- By combining unique ionizing and dust-removing technologies, a revolutionary equipment for foreign object countermeasures was created.
The following are some typical Trink products for foreign object countermeasures.
Clean Environment Equipment
CLEAN-ROOM UNIT
It is possible to make the general environment clean room simply by installing this unit in required places.
Features
- Large-scale construction work is not required, and construction cost and period do not occur.
- It is free to change or expand the layout.
- A space with high cleanness and ionized is constructed because it has a space neutralization function. Even if there is foreign objects, it does not adhere since it is neutralized, drastically reducing defects caused by foreign objects.
- ESD countermeasures such as wrist straps are not required in the neutralized space.
- Compared with conventional clean rooms, the initial cost and running cost are reduced to a few times. It is possible to construct a clean environment easily.
- It combines the effects of static and dust removal, so the start-up time is very quick.

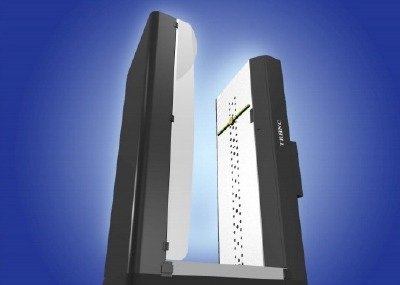

ION AIR-SHOWER KIT
Compared with conventional air showers, It is a revolutionary air shower on another level in terms of performance, processing time, durability and operability.
Features
- A very high dust removal rate is achieved because the ionizer is mounted to remove dust while neutralizing.
- Conventionally, it was difficult to blow air below the knees due to the structure, but this machine can thoroughly remove dust from the top of the head to the bottom of the shoes.
- Large-scale construction work is not required, and construction cost and period do not occur.
- The unit is equipped with casters on the bottom, making it easy to move for layout changes.
- The unique airflow control prevents dust from spreading to the surrounding area despite the doorless structure. The doorless design reduces waiting time and allows for fast processing.
- It absorbs and purifies the surrounding air, thus making the surrounding environment clean.
Dust removal equipment

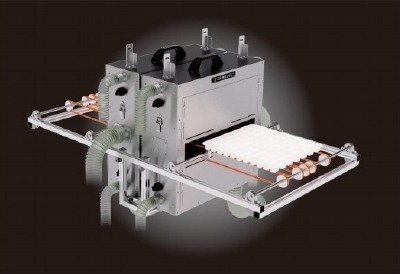

Tray Cleaner
Unlike the conventional tray cleaner, it realizes a very high dust removal rate through powerful ionization and unique dust removal technology.
Features
- This machine is a dry type and does not require large-scale equipment like a wet type.
- A high dust removal rate is achieved by removing dust while removing static electricity with a powerful ionizer.
- In spite of its doorless structure, it does not spread dust to the outside due to its unique dust removal technology. Conventional cleaners require the door to be opened and closed each time, causing the door to malfunction. However, this machine has no such risk.
- High dust removal performance and doorless structure enable high-speed cleaning continuously.
- It can be connected to other equipment, and the cleaning process can be automated.
- It is compatible with pockets of various shapes and has high versatility.
Planar object cleaner
Conventional film cleaners are large and expensive, and their dust removal performance was never satisfactory.
After analyzing the issues faced by conventional cleaners, it has succeeded in realizing a very high dust removal rate through powerful ionization and unique dust removal technology.
Features
- A high dust removal rate is achieved by removing dust while removing static electricity with a powerful ionizer. Since the static electricity on the film is removed, it prevents foreign objects from attaching after cleaning.
- Unlike conventional cleaners, it does not require a tension roller and can clean completely without contact.
・No foreign objects attaching by contacts with roller.
・Simultaneous processing on both sides.
・Capable of processing even slightly uneven workpieces.
・Realizes miniaturization and low price for equipment.
・Retrofittable due to compact size. - It is compatible with various flat workpieces such as films, metal foils, and panels.
We have introduced some typical products, but TRINC also offers some other devices for foreign object countermeasure.
We would be happy to hear from you if you have any problems with foreign object countermeasures.
TRINC, a specialist in foreign object countermeasures, and our company, an authorized distributor, can solve your problems.
