Clean Desktop TRINC
In place of conventional clean booths and clean benches, it is possible to realize low cost, small-space and energy-saving. Cleanliness and arrival time are overwhelmingly improved compared to conventional clean benches, etc., and dust from outside is not entrained. It shows its power in assembly, various inspections, hand washing, etc.

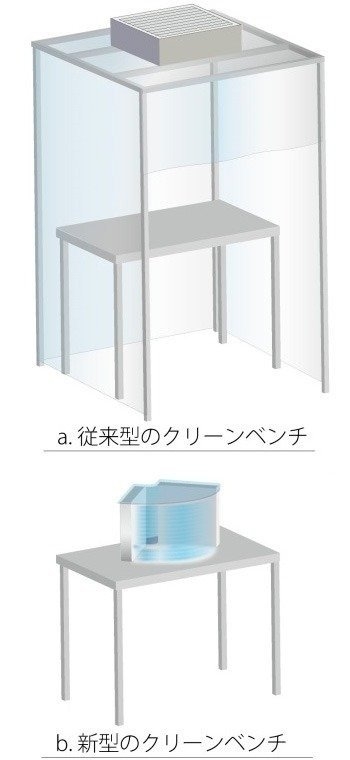

1.Innovation in appearance
★ Conventional clean bench
- Large size (126 times the volume of the new model)
- Floor-standing type
★ New clean bench (Desktop TRINC CDT)
- Small size (one-126th the volume of the old model)
- Desktop type
2. Structural and functional innovations
★ Conventional clean bench
- Maintenance or replacement is required in 3 months due to constant intake of outside air (filter clogs quickly).
- Cleanliness is limited due to workers entering inside.
- Turbulence is generated at the bottom of the filter, causing dust to circulate inside.
- When the filter is clogged, the airflow becomes weak and dust from the outside air enters.
★ New clean bench (Desktop TRINC CDT)
- No more intake of outside air. (The filter lasts longer.) Maintenance or replacement is sufficient once every 2-3 years.
- Cleanliness is extremely improved due to no workers entering inside.
- Since it is a full-face filter, turbulence is n<strong> </strong>ot generated, and dust does not fly up and circulate inside.
- It is compact yet has a spacious working area. It is wide at hand, especially in the left-right directions, making it easy to move things in and out.
3. Performance reforms
1) Start-up performance
★ Conventional clean bench
Cleanliness does not increase easily (takes 1 to 2 hours).
★ New clean bench (Desktop TRINC CDT)
Class 10 or lower reaches in just one minute. ( In case of using HEPA filter)
2) Cleanliness level
★ Conventional clean bench
Normally, it is about Class 1,000 to 10,000.
★ New clean bench (Desktop TRINC CDT)
It is Class 10 or less. ( In case of using HEPA filter)
3) Sustained performance
3-1 Maintenance frequency
★ Conventional clean bench
Maintenance or replacement is required every 3 months.
★ New clean bench (Desktop TRINC CDT)
Maintenance or replacement is once every 2-3 years.
3-2 Maintainability
★ Conventional clean bench
- It takes about an hour.
- Tools such as ladders and screwdrivers are required.
- It is dangerous to work at high places using ladders.
★ New clean bench (Desktop TRINC CDT)
- It takes only about 10 minutes.
- No tools such as ladders or screwdrivers are required.
- It is safe to do while sitting down.
3-3 Environmental damage level
★ Conventional clean bench
The environment was polluted by scattering dust in maintenance or replacement every 3 months.
★ New clean bench (Desktop TRINC CDT)
Maintenance requires only once every 2-3 years, so the environment is not polluted.
