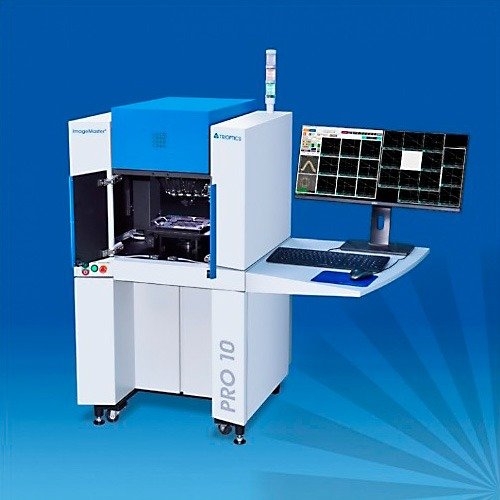

MTF Measuring Device for production sites ImageMasterPro Series
This is an ultra-high-speed, high-precision fully automatic MTF measuring device for production sites (mass production inspection, quality control, etc.).
There is also an Image Master Pro Sort type equipped with an automatic sorting machine.
Features
- Measurement accuracy: 0.8 % MTF on-axis and 1.5 % MTF off-axis
- Measurement time: 1.3 seconds per sample (2700 UPH)
- Measurement point: Up to 53 measurement points in 27 field positions (cameras)
- Maximum field of view: 215° (optional)
Measurement items
- MTF (on and off axis)
- MTF at best lens performance (tilt correction)
- Multi frequency MTF measurement
- Effective Focal Length (EFL)
- Flange Focal Length (FFL)
- Field curvature
- Tilt of image plane
- Depth of Focus (DOF)
- Best focus position
- Astigmatism
- Relative distortion
