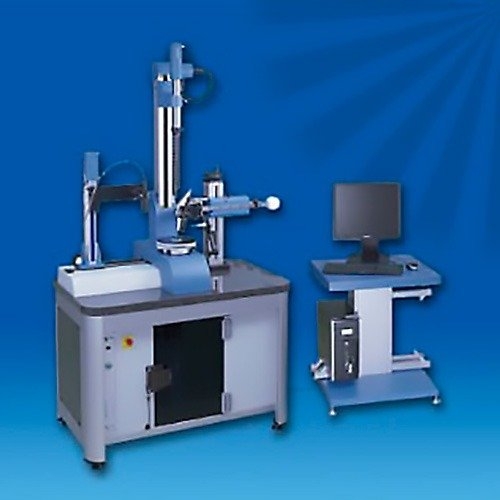

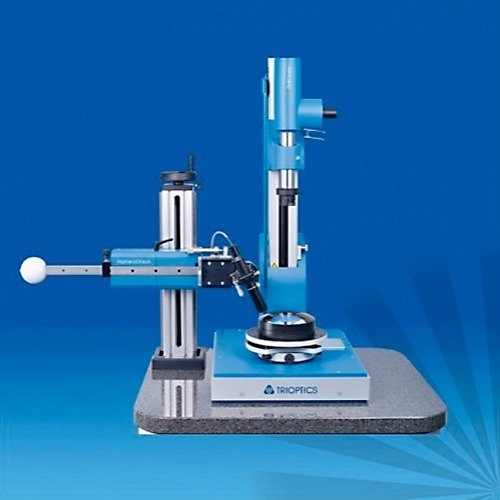

High-precision Eccentricity Measuring Device + Aspherical Axis Measurement Options OptiCentric® AsphereCheck
This is a device that measures tilt of an aspherical axis with non-contact, high-precision, and simply.
※With the addition of the automation option, the positioning is more convenient, and enables easier and quicker measurement.
Features
- The selection of the reference axis can arbitrarily determine either the mechanical or optical axis reference, and there is no need to align the reference axis with the rotation axis, and the measurement work does not require skill.
- The automatic OptiCentric® measuring device itself determines the reference axis, and the confocal chromatic sensor measures the tilt of an aspherical axis with respect to the reference axis.
- The measurement results are displayed as tilt angle (arcmin) and azimuth x-z/y-z results.
