Resolution Power Test Projector
A device to inspect the resolving power of lenses.
Features

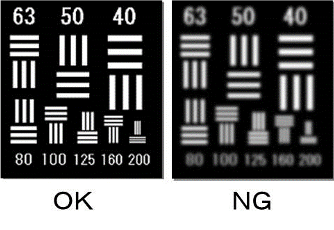

- By attaching the lens to the front of this device and projecting the chart on the screen, it is possible to visually inspect the resolving power, distortion aberration of the lens, etc.
- Interchangeable charts are also available according to the purpose.
- It is proven in inspecting lenses for CCD cameras, surveillance cameras, industrial cameras, and mobile phones.
Specifications
- Minimum flange back: 5 mm from the mounting reference surface
- Focus adjustment range: forward/backward travel 25mm
- Movement amount display: 0.01mm digital display
- Lens mount receiver: M72x1
- Light source 24V 200W halogen lamp
