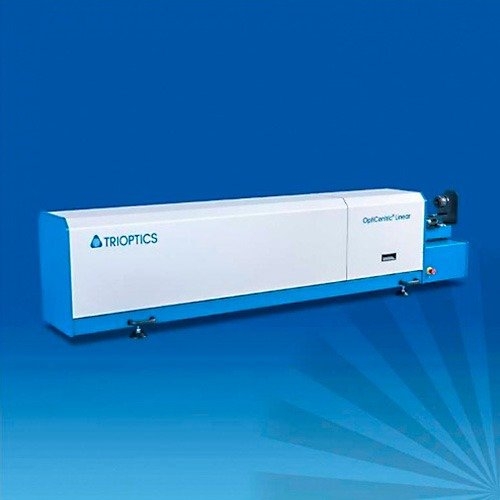

Nn-rotating High-precision Inter-plane Eccentricity Measuring Device OptiCentric Linear

The OptiCentric Linear is a non-rotary inter-plane eccentric measuring device newly developed by TRIOPTICS.

Inter-plane eccentricity measuring device that TRIOPTICS has manufactured and sold for many years is a device equipped with vertical air bearings.

The OptiCentric Linear has a horizontal device structure that does not require rotation, enabling high-speed measurement compared to rotary type.

In addition, it is effective in cases where you want to measure high-quality lenses with a image stabilization mechanism.



Features

  • High speed (single shot) measurement is possible.
  • Non-rotary allows measurement without moving the measurement sample.
  • OptiSurf (center thickness and surface spacing measurement) option can also be installed.
  • Measurement accuracy <1μm
